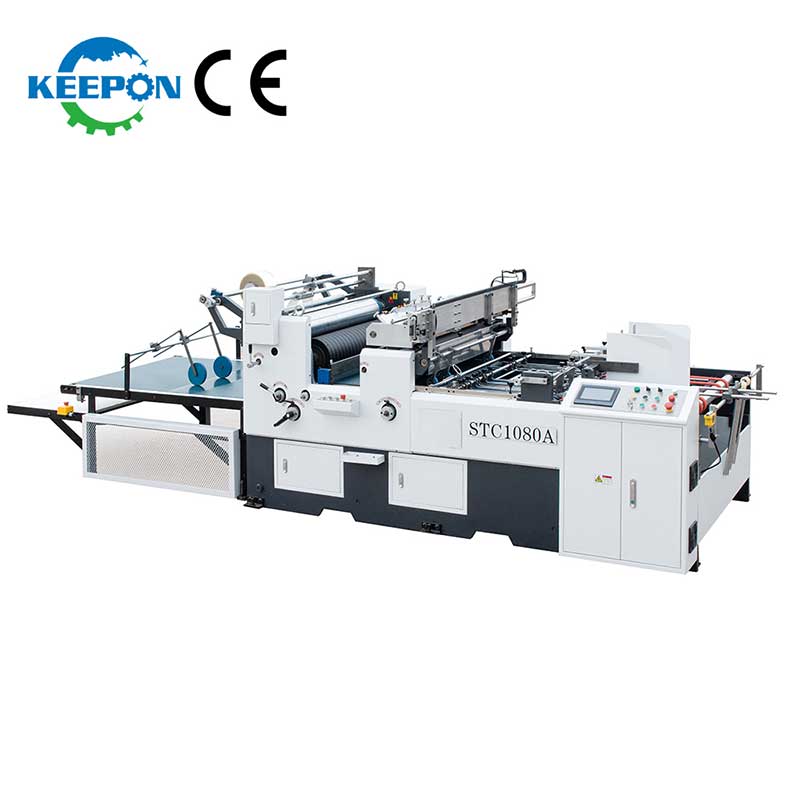

STC-1080A Automatic Window Patching Machine

Use:

This automatic window patching machine is the most advanced and special equipment for patching windows of graphic carton and gift box. Base on the humanization design, it has the characteristics of high efficiency, high accuracy, high stability and easy to operate. It is suitable for the cardboard and corrugated paper. The paper is pulled away from the bottom of the paper stack one by one with non-stop. After paper forward positioning, flexographic plate modeling composition, accurate patch cutting, it can be use for window patching of the gift box, toy box, shirt box and milk box and so on.

The mainframe adopts 30mm steel wall. The steel plate is dealt with heat treatment and processed by digit control machine. It runs smoothly with high quality stability. The machine is comprised of 5 units of feeder, positioning, gluing, patching and delivery unit.

The feeder adopts imported Ever-power scratch furrow conveyor belt from USA. Matching by our unique supporting plate intermittent feeding mode, the paper feeding is very smooth and no overlapping paper or missing paper, which makes the machine speed up to 7000 sheet/hour. The air draft conveyor belt and paper delivery conveyor belt are imported from Schneider. The mechanical transmission driving train is from Japan. The key components of the machine adopt NSK bearing from Japan. The buttons of the control system and contactor adopt SCHNEIDER-KREUZNACH. Human-computer interface is from Taiwan Wenview. PLC transducer is from DELTD. All photoelectric switches are from Omron. The Electric motor is from Taiwan(TECO YVF).

Technical Specifications:
