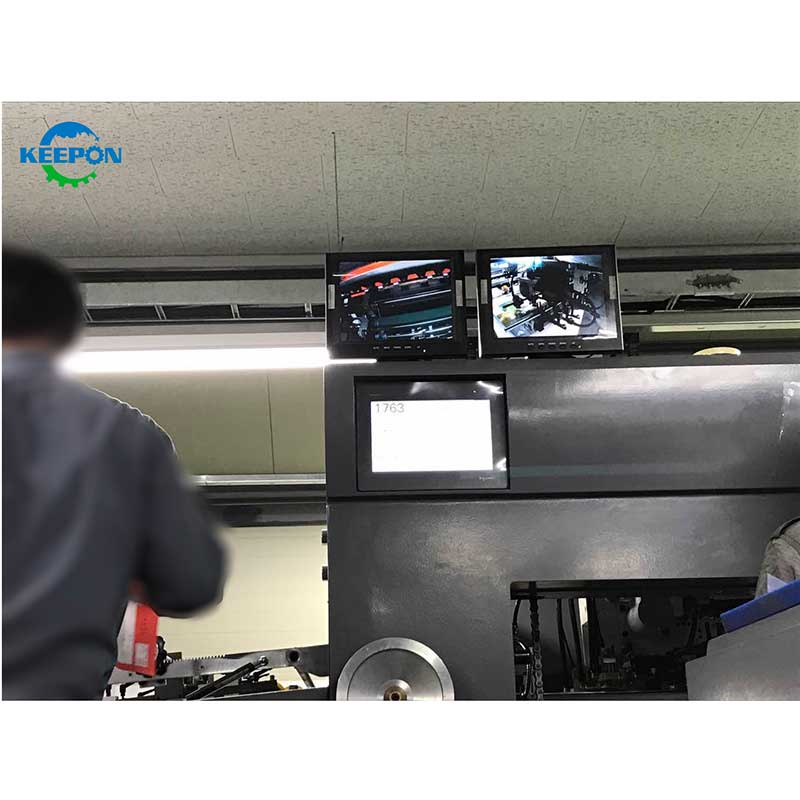

MHK-1050T 1050TC Automatic Hot foil stamping And Die Cutting Machine

The MHK-1050T/TC fully automatic hot stamping and die cutting machine can efficiently complete the die cutting and stamping of products, as well as maintaining the highest precision and product quality. The MHK-1050T/TC full-automatic hot stamping machine are well equipped and almost can adapt to all hot stamping requirements of products(Only MHK-1050TC model with stripping function)

Features:

1. High quality feeder made in Taiwan with 4 suction nozzle for stack paper and 4 suction nozzle for delivering paper , ensures stable and fast paper feeding .

2. Pre-loading unit, non-stop feeding , with Max pile height to 1600mm.

3. The pre-loading unit is equipped with guiding rails, operator move the stack paper to feeder accurately and conveniently.

4. Side and front guiding have sensor which can adjust the sensitivity.

5. The anti-obstacle device prevent the machine damaged.

6. Paper feeding will be slow down when the paper reach the front guiding, achieve more accurate location.

7. Japanese NITA convey belt, the speed can be adjusted.

8. Germany made stainless steel is used for convey board in order to achieve smooth and quick paper delivery.

9. Pneumatic cutting plate lift for easy slide in and out.

10. Easy way to turn over and change die cutting chase and plate with short time.

11. High quality gripper bars made in Japan with long life time.

12. High quality U.K imported chain ensure stability and accuracy in long time running.

13. Automatic lubrication and cooling system for main drive and automatic lubrication for main chain.

14. Overload protection device with torque limiter in index box for the highest safety of operator and equipment.

15. Crank shafts and worm rod is made of 40 Cr with heating handling. Turbine is made of copper.

16. High quality imported air clutch.

17. SMC pneumatic components.

18. The upper, middle and lower stripping frames are controlled by 3 GPRS of cam wheels respectively.

19. Match with the center-line registration system in die cutting unit, the same system also apply to the stripping station to minimize changeover time , Accurate positioning can increase production efficiency.

Technical Specifications:
