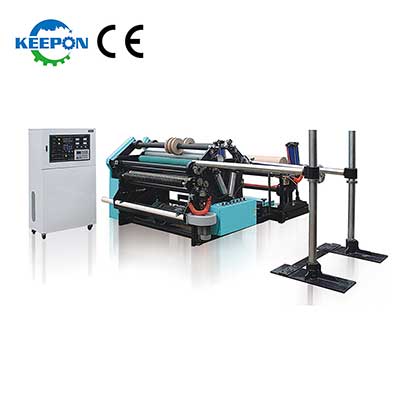

HQG-A Series Jumbo Roll Slitting Machine

Product Description:

HQG-A series high speed jumbo roll paper slitter rewinder machines are top grade high quality model slitter machines, suitable for slitting and rewinding various kind of paper,jumbo roll adhesive label paper, plastic film,foil ,metallized film, and others laminates etc.

Features:

1.Import PLC for centralized control, with touch screen operation interface, is able to set working parameters and display working status in screen.

2.Main motor driven by the variable frequency motor, and controlled by the frequency inverter, fast and stable for acceleration and deceleration.

3.Rewinding adopts differential air shafts,driven by the variable frequency control motor, automatic tension control.

4.Unwinding is controlled by the inverter and driven by the variable frequency motor, automatic tension controlled.

5.Unwinding adopts shaft-less loading and unloading, hydraulic lifting, easy for efficient loading and unloading, with web guide system.

6.With functions of meter length counting, diameter calculating, automatic stop while up to the set length.

7.Integrated with mechanical, electricity and pneumatic, with complete safety protections.

8. Main components use world famous brand so keep the top level high quality slitting equipment.

9. The finished roll paper use chain system to unload and easy for handling.

10. The knife system with special device so can slitting self-adhesive label paper

Technical Specifications:
