You are here » Home » Products » Slitter Rewinders » KG-D Model Four Rewind Shaft Turret Type Slitting Machine

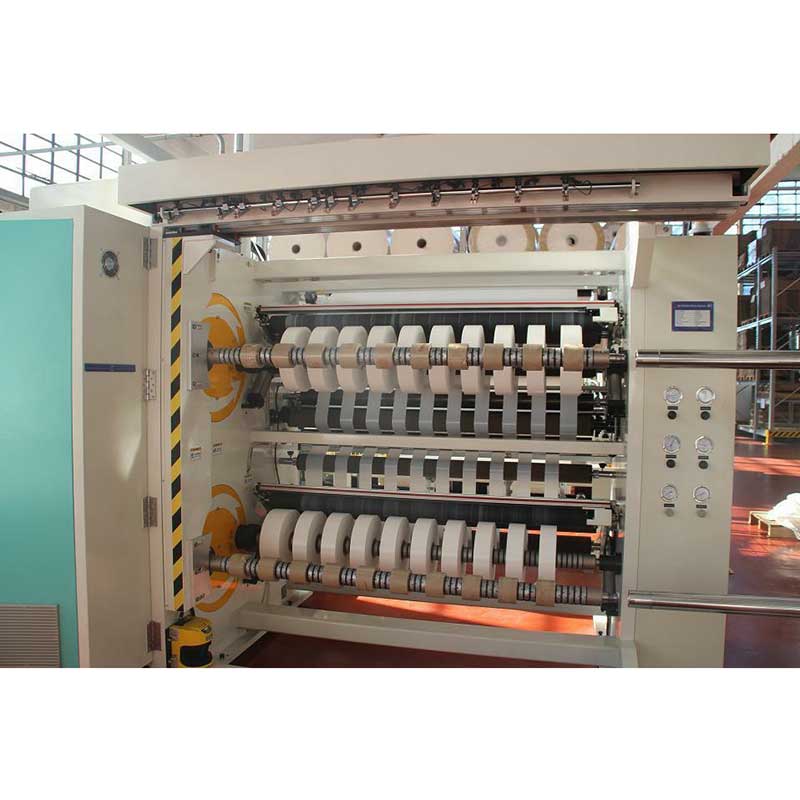

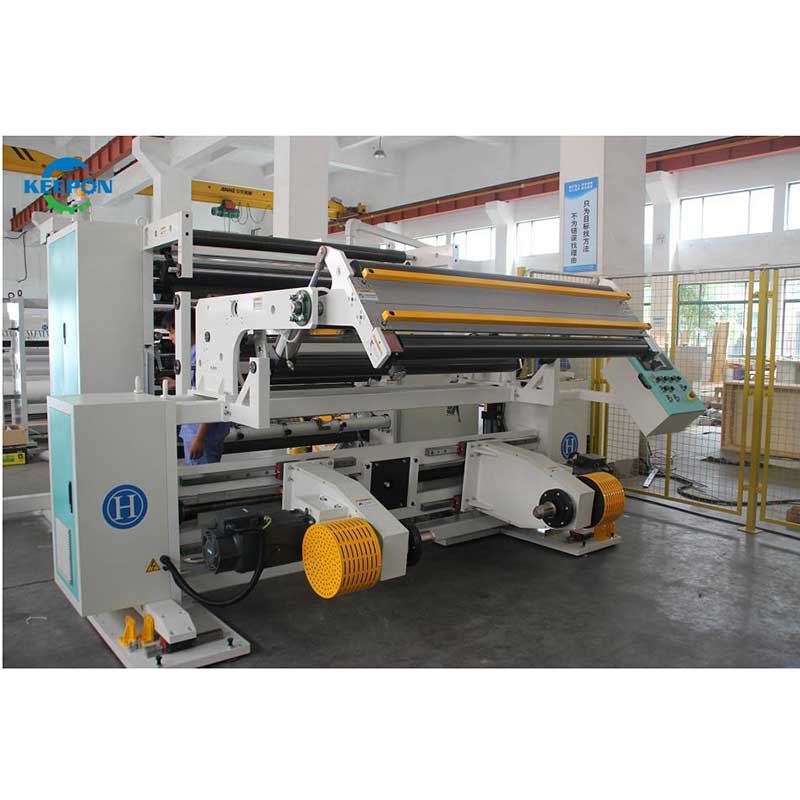

KG-D Model Four Rewind Shaft Turret Type Slitting Machine

KG-D series slitter rewinders are the most top grade high quality model slitting machines, is suitable for slitting and rewinding various kind of paper, label stock, plastic film, foil, metallized film, and others laminates etc. It is with six servo motor for automatic tension control, ultrasonic system for detect the unwind diameter, PLC touch screen for calculate the tension value change and give compensation. The rewind unit with four shaft turret type, non-stop and fully automatic cutting and change rewind rolls, automatic push rewind rolls for unload system. Slitting speed up to 600m/min.

Product Detail Online inquiry

KG-D Model Four Rewind Shaft Turret Type Slitting Machine

Technical Specifications:

Kinds of material

BOPP, PET, Label paper, Film Etc.

Thickness of material

25-150μm

Unwind width

1300/1600mm

Unwind diameter

1200mm

Unwind paper core

Shaftless 3 and 6 inch core

Model of slitting

Round and straight knife

Machine speed

650m/min

Slitting speed

600m/min

Rewind width

Min. 50mm

Rewind diameter

Max. 600mm

Roller width

1400/1700mm
