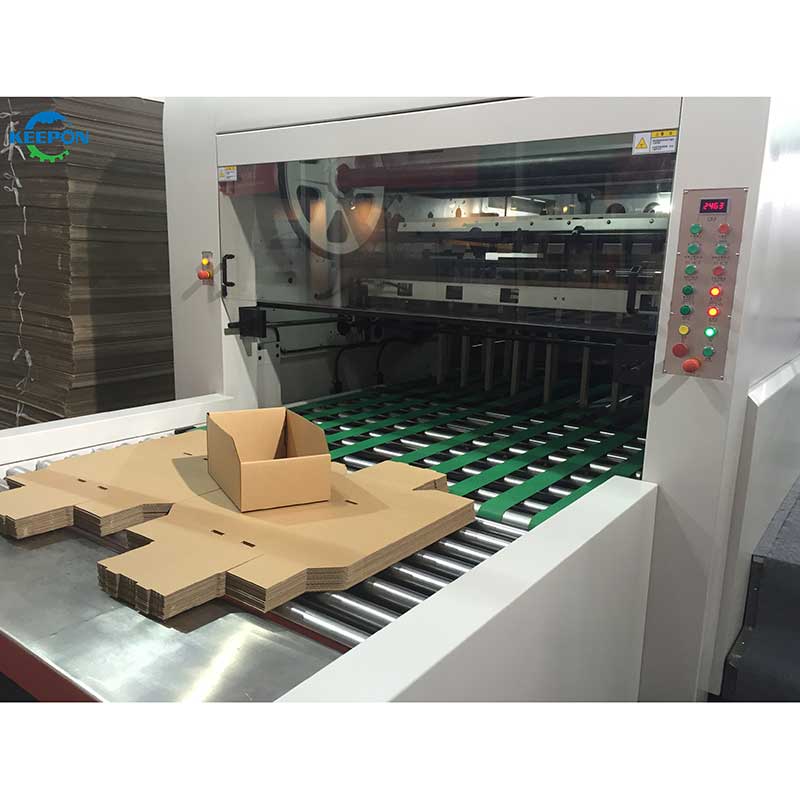

MHK-FC Fully Automatic Die Cutting Machine For Corrugated Board

MHK-1650FC fully automatic die cutting and creasing machine is designed only for corrugated carton box, it is high speed automatic die cutter with four side stripping, as well as the finished sheet batch conveyor function. This corrugated die cutter with optional part, such as automatic pre-loading, separation and sheet turning.

E-mail Us

Video Link

Youtube

Product Detail	Online inquiry

Welcome to our website! Please feel free to send us your questions by asking us, we will contact you and provide you with the services as soon as possible. Please write in English.

Subject:

*Your Name:

*E-mail:

Address:

Tel:

Fax:

QQ:

Country:

*Content:

Model	MHK-1900FC	MHK-1650FC	MHK-1500FC	MHK-1300FC
Max. sheet size	1900X1400 mm	1650X1200 mm	1500X1100 mm	1300X940 mm
Min. sheet size	650X450 mm	650X450 mm	550X450 mm	550X450 mm
Max. die cutting size	1870X1380 mm	1620X1180 mm	1480X1080 mm	1290X940 mm
Min. gripper margin	6-12mm	6-12mm	6-12mm	6-12mm
Min. gripper waste	12mm	12mm	12mm	12mm
Cutting rule height	23.8mm	23.8mm	23.8mm	23.8mm
Inner chase size	1900mm×1430mm	1650mm×1230mm	1520mm×1130mm	1310mm×970mm
Corrugated thickness	Max 8.5mm, Min 1mm	Max 8.5mm, Min 1mm	Max 8.5mm, Min 1mm	Max 8.5mm, Min 1mm
Max. working pressure	450tons	400tons	400tons	400tons
Max. working speed	5500s/h	6000s/h	6000s/h	6000s/h
Total power	38Kw	38Kw	30Kw	25Kw
Machine dimension(L x W x H)	13000X6200x2780mm	12000X5470x2500mm	11800X5000x2400mm	10630X4820x2400mm
Machine weight	40ton	35ton	24ton	21ton
