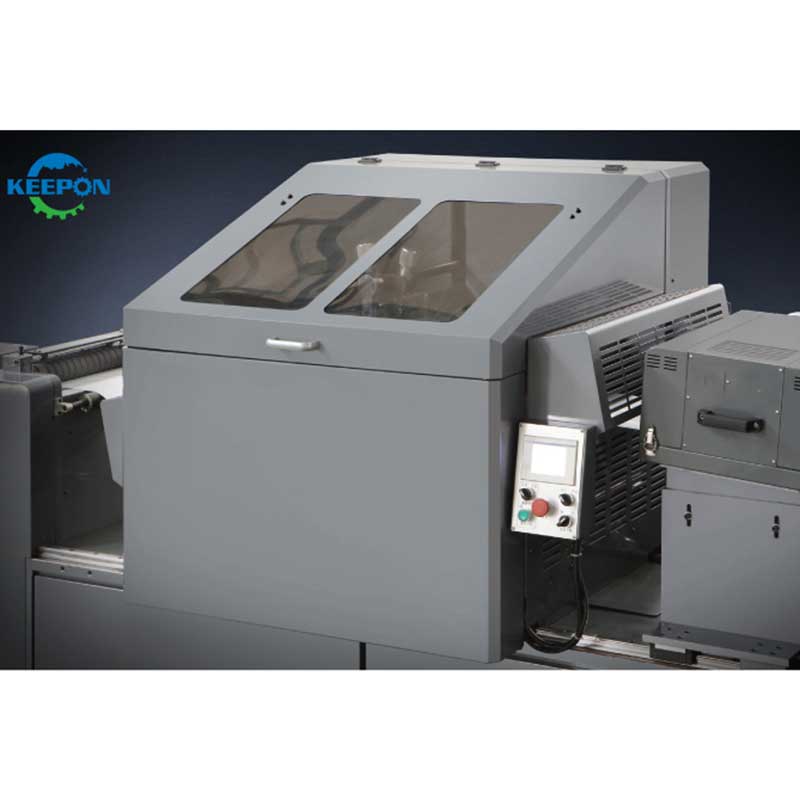

LX-320 Intermittent Offset Label Printing Machine (PS Plate)

Features:

1. LX-320 intermittent offset label printing machine adopts exact servo control system which can ensure the stabilization when the printing material in the printing process. It can free from the printing roller change.

2. Printing unit: Assembled with 19 pieces of ink rollers, 4pcs of  Form Rollers and 4pces of water rollers (alcohol dampening system), has nice ink working system to avoid Streak trouble and Ghost image efficiently, largely increase the printing quality. The definition and precision made would never be reached by flexo press.

3. Shaftless transmission system: every printing unit transmitted by an independent servo motor, 15 sets of servo motors in total for whole machine (6color) to ensure the exact color registering precision during high speed operation.

4. Positioning system: The only work is to input the printing length on the main control panel, every unit will be motioned to the right position automatically. Largely saves time and materials when adjust the color register.

5. Color registering system: the vertical and horizontal motions of every printing unit are all controlled by independent motor (ease the laboring and reduce the waste). By video still system, the machine can regulate vertical & horizontal Registering without stopping, it improves the printing quality and increases the producing capacity.

6. Super Large printing area: 300X350, the maximum printing length could be reached at 350mm and the running maximum speed is 63m/min. By high-precision photocells, the machine ensures multi-register print on both side, make the possibility of label pattern variety.

7. Every printing unit equips with clutch device to be stopped independently by lifting away when needed. This system extends the machine using life.

8. Multi options: flexo UV varnishing unit (both solid and spot) and rotary die-cutting unit can be the option for this machine. Only one big magnetic die-cutting cylinder used in this machine, largely saves the tooling cost. Different die-cutting job can be achieved only by changing the flexible die.

9. Touch LCD screen, faster CPU, independent touch screen 12inch operating display, in each printing unit, powerful human-computer dialogue system, multi-guide inspecting display interface, instant alarm signal, makes operation much easier and more efficient.

10. PS plate Intermittent printing hits the high-level demands whatever high, mid or low capacity printing task, and it is an ideal choice for print house to produce the high-grade adhesive labels.

Technical Specifications:
