DK-320G Model Label Slitter With Rotary Die Cutter
DK-320G Slitting machine with rotary die-cutting unit is a new product produce by KEEPON. It equipped with high precision rotary die-cutting system.This machine suit for blank adhesive labels die cutting and slitting in one process. This slitter rewinder has the function of automatic meter or piece counting, auto-stop, web guiding by photocell.
E-mail Us
WhatsApp
Video Link
Youtube| Product Detail | Online inquiry |
|---|

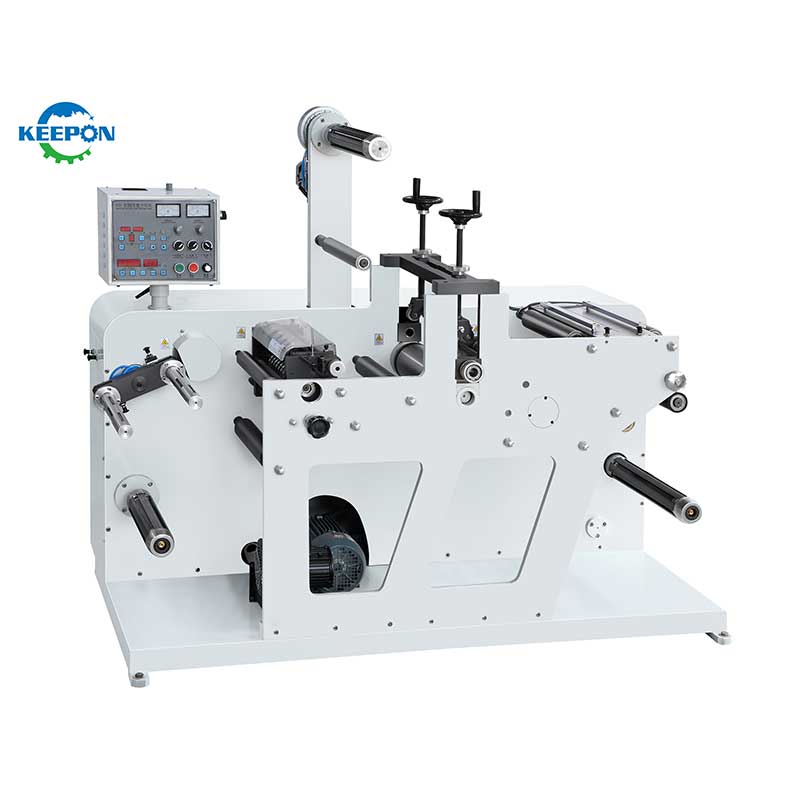

DK-320G Model Label Slitter with Rotary Die Cutter
DK-320G slitting machine with rotary die-cutting function is a new product. It equips with high accurate rotary die-cutting system.This machine is suitable for blank adhesive labels. Die-cutting, laminating(option), slitting can be finished in one process. It has the function of automatic meter counting, automatic stop, web guiding by photocell. The machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running etc.
Technical Specifications:
|
Slitting speed |
120 m/min |
|
Die-cutting speed |
100 m/min |
|
Max. web width |
320 mm |
|
Die-cutting repeat length |
177-476 mm |
|
Max. unwinding diameter |
500 mm |
|
Max. rewinding diameter |
480 mm |
|
Overall dimensions |
2.0X1.25X1.75 m |
|
Weight |
About 900 kg |
